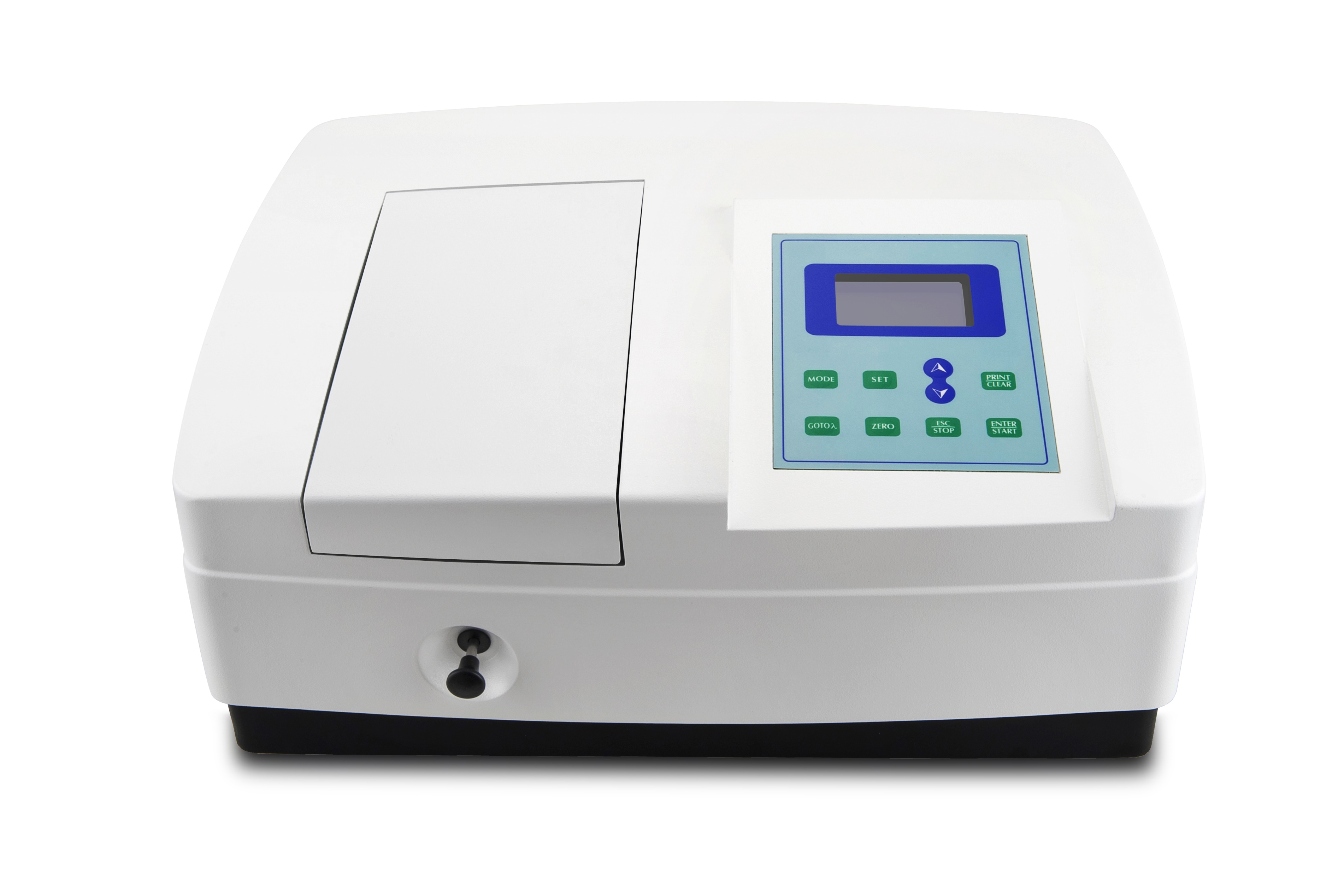

UV-5100B UV/VIS Spectrophotometer
    Publish time 2020-12-21 16:56



UV-5100B is a parctical UV visible spectrophotometer. It's special structural design ensures

high reliability and easy replacing of components.



[Features]



Low stray light

UV-5100B is made of high quality components with rigid structure which ensures low stray

light.

Auto setting wavelength

Users can set wavelength automatically through arrow keys to avoid operation errors.

Stability and durability

UV-5100B users a rigid die-cast aluminum base as its optical mount to ensure instrument

stability and reliability.

Data output

UV-5100B is equipped with USB port to connected with a PC to display spectrum scanning,

kinetics and multi wavelength testing results on the screen. The software is optional.

Standard curve

UV-5100B can set up various standard curves according to customer's solutions and find theconcentration of unknown solutions.

Multiple results readout

UV-5100B can display wavelength, absorption and transmittance with 5 results per screen.

It also has a memory store of up to 200 results.



[Technical Specification]



Model

UV-5100B

 Optical System

Single beam, grating 1200 lines/mm

 Wavelength Range

190-1000nm

 Bandwidth

2nm

 Wavelength Accuracy

±1nm

 Wavelength Repeatability

0.2nm

 Wavelength Setting

Auto

 Photometric Accuracy

±0.5%T

 Photometric Repeatability

0.2%T

 Photometric Range

-0.3-3A, 0-200%T, 0-9999C

 Stray Light

 ≤0.05%T@220, 360nm

 Stability

±0.001A/h @500nm

 Display

128*64 LCD

 Detector

Silicon Photodiode

 Light Source

Tungsten  Lamp & Deuterium Lamp

 Output

USB & Parallel Port (Printer)

 Power Requirements

AC 85~250V

 Dimension

490*370*220mm

 Weight

15kg























[
Standard Accessories]


Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
