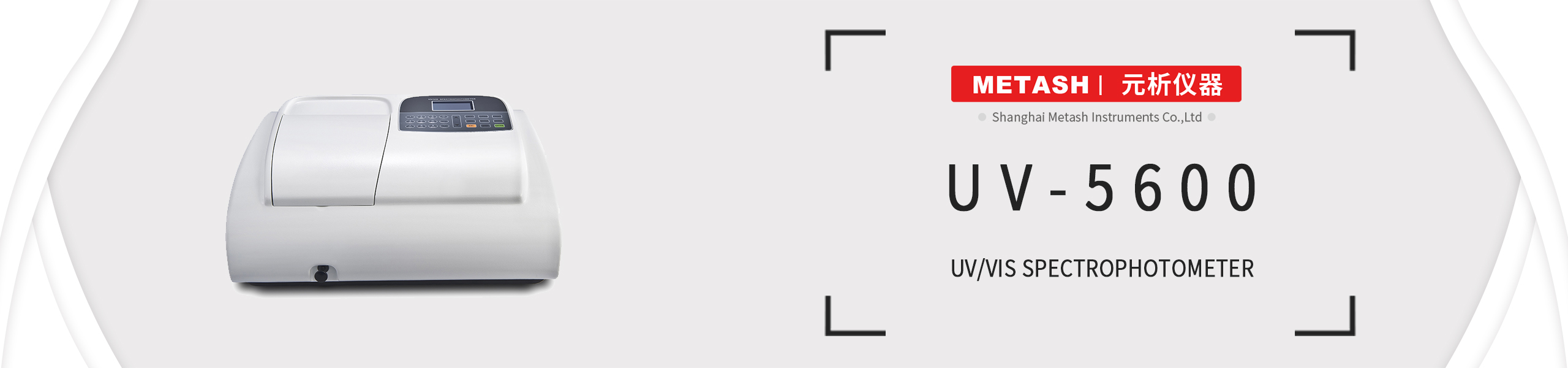

UV-5600 UV/VIS Spectrophotometer
    Publish time 2020-10-14 13:44



[Features]


Lead screw structure

The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.

Auto setting wavelength

Users set wavelength automatically through arrow keys to avoid operation errors.

Numerical Keys

With microprocessor controlled, all parameters of the instrument can be easily set by

numerical keys.

Data output

Equipped with USB port to connect with a PC to display spectrum scanning, kinetics and

multi wavelength testing results on the screen through the optional software.

8mm thick optical base

The instrument use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

Imported high quality deuterium lamp

The UV instruments use imported flanged deuterium lamp with low stray light, pohotmetric

accuracy and easy replacing.

Standard curve

instruments can set up various standard curves according to customer's solutions and find

the concentration of unknown solutions.


[Technical Specification]


 Model

UV-5600

 Wavelength Range

190-1100nm

 Bandwidth

2nm

 Wavelength Accuracy

±0.5nm

 Wavelength Repeatability

0.2nm

 Wavelength Setting

Auto

 Photometric Accuracy

±0.3%T

 Photometric Repeatability

0.2%T

 Photometric Range

-0.3-3A, 0-200%T, 0-9999C

 Stability

± 0.002A/h @ 500nm

 Baseline Flatness

± 0.002A/h

 Stray Light

≤0.05%T@220nm, 360nm

 Data Output Port

USB

 Printer Port

Parallel Port

 Display

128*64 Dots LCD

 Lamps

Tungsten Lamp & Deuterium Lamp

 Detector

Silicon Photodiode

 Power Requirements

AC   220V/50Hz or AC 110V/60Hz

 Dimension

460*360*225mm

 Weight

18kg




































[
Standard Accessories]



Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
