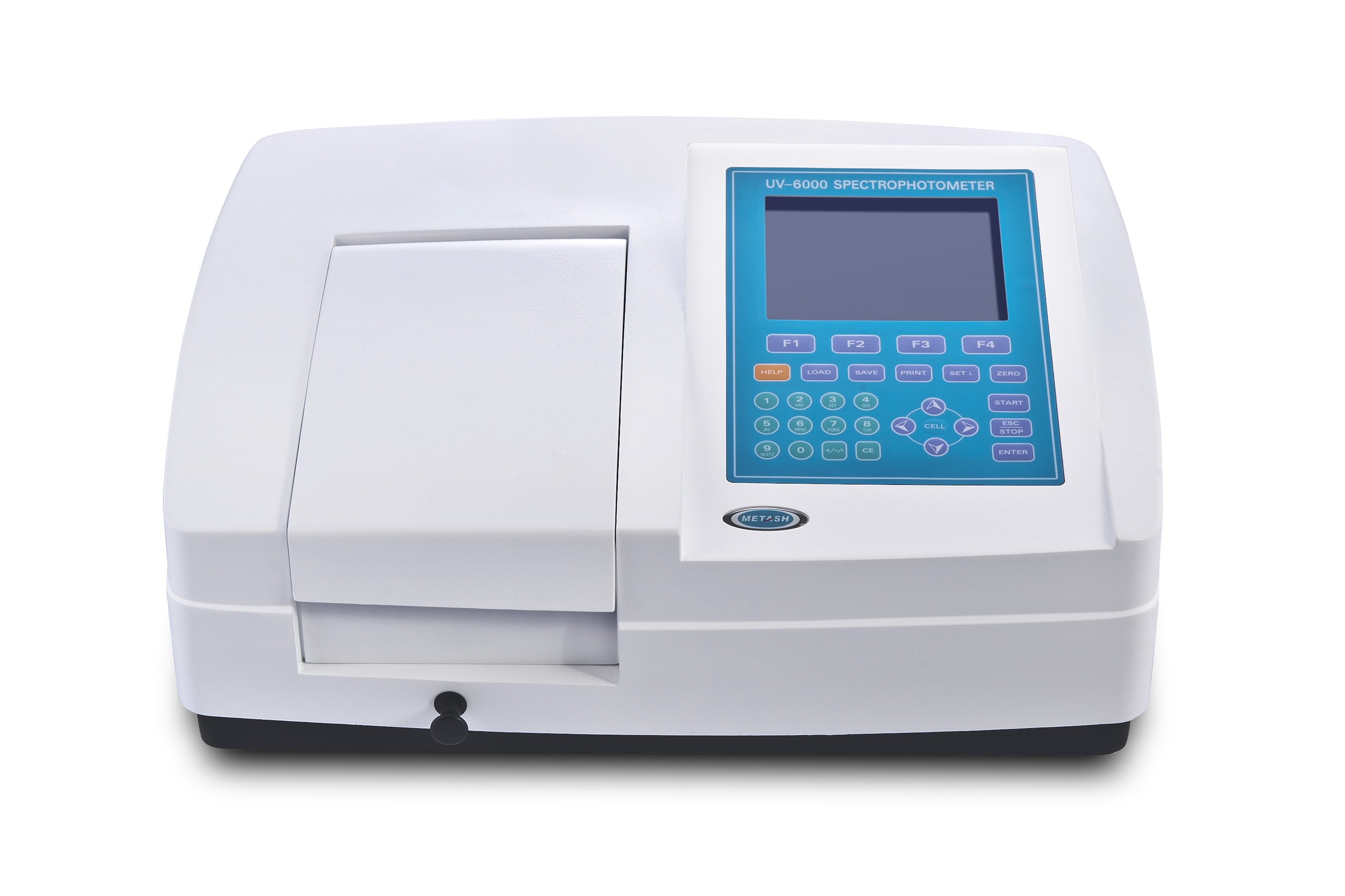

UV-6000 UV/VIS Spectrophotometer
    Publish time 2020-10-14 22:34




UV-6000 spectrophotometer equipped with 6 inches LCD display, is an ideal and advanced analytical instrument for
laboratory to realize wavelength scanning,

Kinetics test, multi wavelengh functions. All functions can be operated on spectrophotometer and can be read directly on the display.


[Features]


6 inches LCD display

UV-6000 series has a 6 inches LCD display to show results and curves directly on the

screen.

8mm thick optical base

UV-6000 uses a rigid 8mm die-case aluminum base as its optical mount to ensure instrumentstability and reliability.

Powerful functions

Multi functions like spectrum scanning, standard curve, kinetics,multi wavelength, DNA/RNA/

Protein testing can be operated directly on the spectrophotometer and all corresponding

curves and data can be displayed directly.

Data output

UV-6000 is equipped with USB port to connect with a PC to display spectrum scanning,

kinetics and multi wavelength testing results on the screen. The sofeware is optional.


[Technical Specification]



 Model

UV-6000

 Wavelength Range

190-1100nm

 Bandwidth

1.8nm

 Wavelength Accuracy

±0.5nm

 Wavelength Repeatability

0.2nm

 Photometric Accuracy

±0.3%T

 Photometric Repeatability

0.15%T

 Photometric Range

-0.3-3A, 0-200%T, 0-9999C

 Stability

± 0.002A/h @ 500nm

 Baseline Flatness

± 0.002A/h

 Noise

± 0.0005A

 Stray Light

≤0.05%T @ 220nm, 360nm

 Data Output Port

USB

 Printer Port

Parallel Port

 Display

320*240 Dots LCD

 Lamps

Tungsten Lamp & Deuterium Lamp

 Detector

Silicon Photodiode

 Power Requirements

AC  220V/50Hz or AC 110V/60Hz

 Dimension

460*380*180mm

 Weight

20kg



























[
Standard Accessories]


Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
