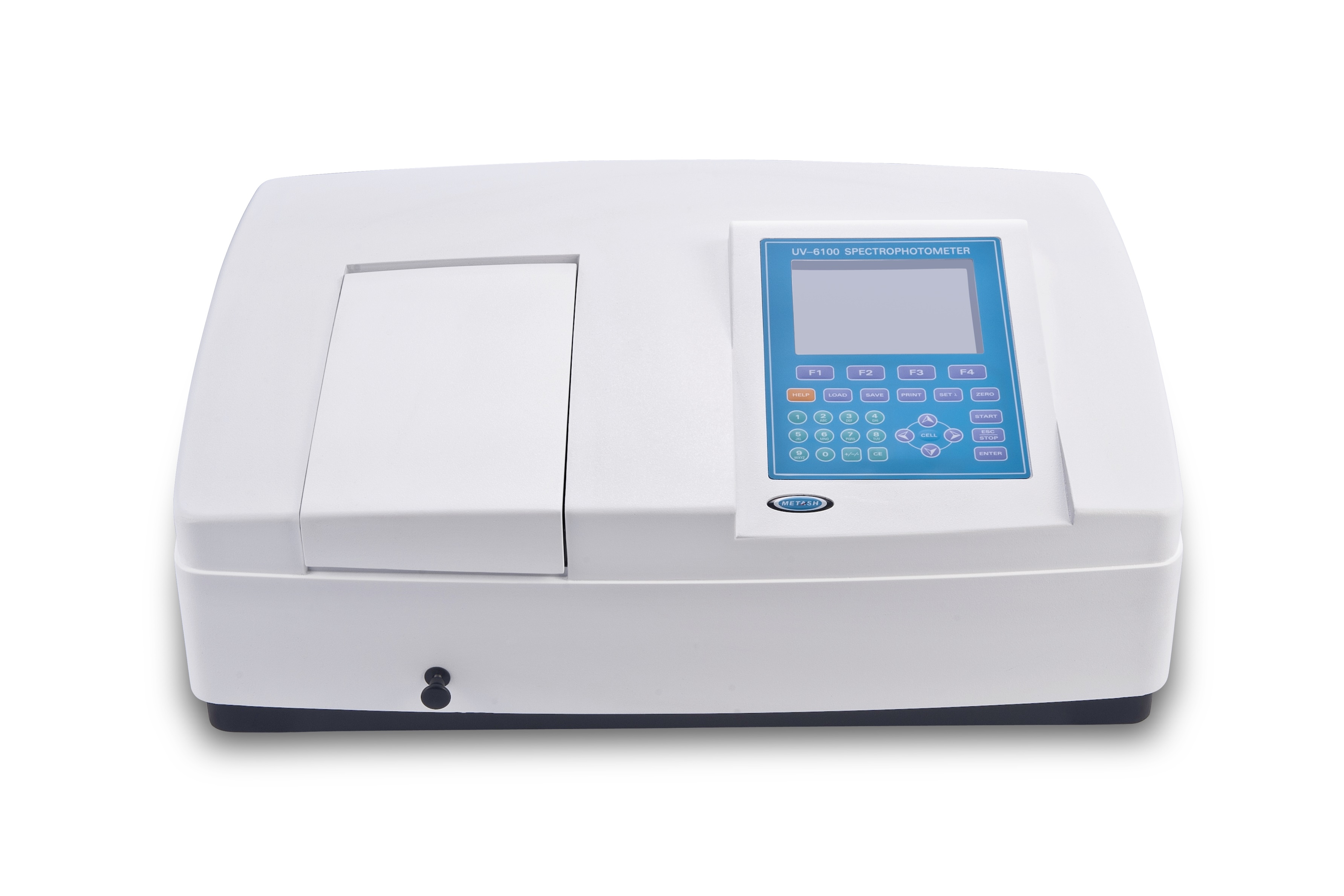

UV-6100 Series UV/VIS Spectrophotometer
    Publish time 2020-12-29 16:05



UV-6100 series are large scanning UV visible ectrophotometers which combine best features of single beam spectrophotometers.

It is your ideal choice for stand-alone spectrophotometers.UV-6100 series spectrophotometer: UV-6100, UV-6100A and UV-6100S.

[Features]

Long light path design

UV-6100 series’ unique 520mm long light path design greatly improved resolution and the

bandwidth can reach 0.5nm.

Multi functions on spectrophotometer

Multi functions operated directly on the spectrophotometer and display the test results’ curve and data:wavelength scanning,
standard curve, kinetics, multi wavelength scanning, DNA/
RNA/Protein test.

16mm optical base

UV-6100 series use a rigid 16mm die-cast aluminum base as its optical mount to ensure

instrument stability and reliability.

Perfect calibration system

All baseline, wavelength, dark current can be calibrated automatically to keep good runningconditions.

6 inches LCD display

UV-6100 series have a 6 inches LCD display to show results and curves directly on thescreen.

Data output

UV-6100 series are equipped with USB port to connect with a PC, and the software comes standard with the instruments.

Powerful software functions

Multi functions like spectrum scanning, standard curves, kinetics, multi wavelength scanning, DNA/RNA Protein testing can
be operated directly on
 PC.

[Technical Specification]



 Model

UV-6100

UV-6100A

UV-6100S

 Wavelength Range

190-1100nm

 Bandwidth

1.8nm

1.0nm

0.5, 1.0, 2.0, 4.0nm

 Wavelength Accuracy

±0.1nm @656.1nm, ±0.3nm @ all

 Wavelength Repeatability

0.1nm

 Photometric Accuracy

±0.2%T(0-100%T)

 Photometric Repeatability

0.1%T(0-100%T)

 Photometric Range

-0.3-3A

0-200%T

0-9999C

 Stability

± 0.002A/h @ 500nm

 Baseline Flatness

± 0.0008A/h

 Noise

± 0.001A

 Stray Light

≤0.05%T @ 220nm,360nm

 Data Output Port

USB

 Printer Port

Parallel Port

 Display

320*240 Dots LCD

 Lamps

Tungsten Lamp & Deuterium Lamp

 Detector

Silicon Photodiode

 Power Requirements

AC 220V/50Hz or AC 110V/60Hz

 Dimension

625*430*206mm

 Weight

28KG/28KG/30KG






































[
Standard Accessories]


Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
