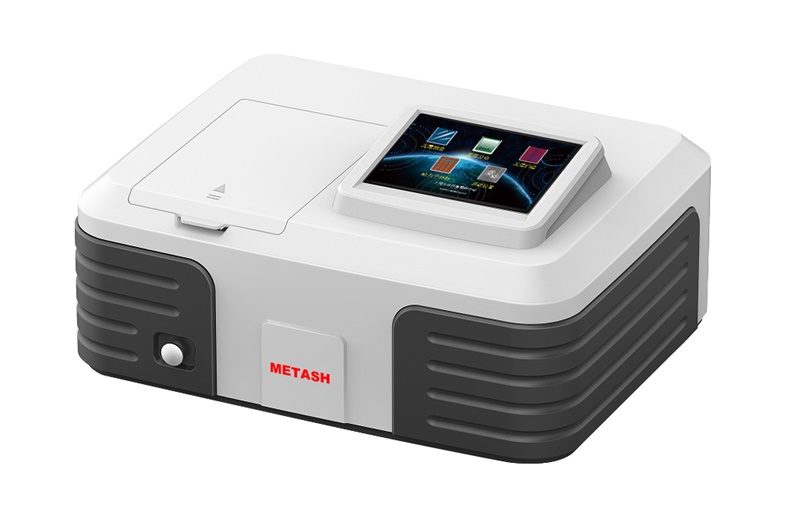

UV-6000T Series Single Beam UV/Vis Spectrophotometer
    Publish time 2021-01-22 11:41




[Features]


◆ 800*480 large touch screen clearly shows test results and graphs.

◆ Powerful data analysis system with internal computer host could realize multi functions independently.


Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning,

   dynamics, DNA/Protein test, multi-wavelength analysis and data printing.

◆ Optical system adopts suspension design. All optical parts are independently fixed on the 8mm thick aluminum

deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system.

This premium design greatly improved the stability and reliability of the instrument.

◆ Convenient data storage and printing function. UV-6000T can be directly connected to the printer for A4 format data and graph printing.

◆ Automatic power on self test and system positioning function could inspect and calibrate the deviation before every use.

◆ All test data and analysis report can be exported to USB disk directly.


[Technical Specification]



 Model

UV-6000T

 Wavelength Range

190-1100nm

 The spectral bandwidth

2nm

Wavelength Accuracy

±0.5nm

 Stray light

0.05%  T @ 220 nm, 360 nm

Wavelength Repeatability

≤0.1nm

Photometric Accuracy

0.2%T(0-100%T)

±0.002Abs(0-0.5Abs)

±0.004Abs(0.5-1.0Abs

Photometric Repeatability

 ≤0.1%T(0-100%T)

0.001Abs(0-0.5Abs)

0.002Abs(0.5-1.0Abs)

Stability

0.001A/h@500nm

Photometric Range

0-200%T, -0.3-3.0A, 0-9999C

Baseline flatness

0.001A

Noise

 ±0.0005A

Display

800*480 touch screen

Data Output Port

USB

Print Port

USB Port

Light source

Tungsten Lamp & Deuterium Lamp

Power Requirements

AC 220V/50Hz or AC 110v/60Hz

Detector

Silicon Photodiode

Dimension

460*380*180mm

Weight

20KG








































[
Standard Accessories]

Item

Description

Quantity

Unit

1

Spectrophotometer

1

set

2

1cm Glass cuvette

4

pcs

3

Power cord

1

pcs

4

User’s Manual

1

pcs

5

1 cm quartz cuvette

2

pcs

6

Dust Cover

1

pcs
