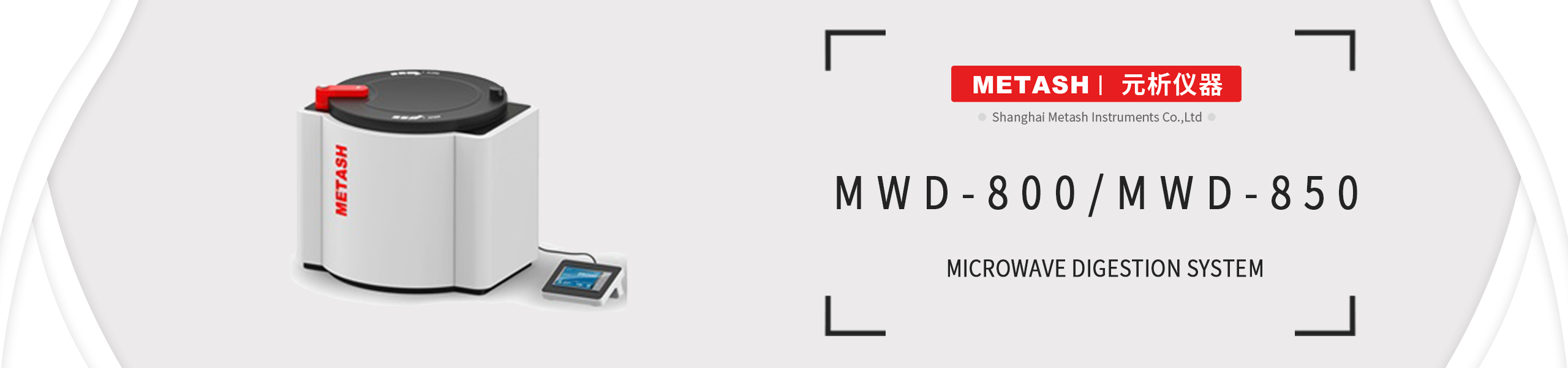

MWD-800/MWD-850 Microwave digestion system
    Publish time 2020-12-22 12:20



[Features]



*Special Designed Sample Digestion Vessel

The automatic vent and self-resealing structure which won national patent ensures the

digestion vessels can automatically release pressure and instantly reseal when a sudden

over-pressure situation occurs. It prevents waste of batch samples and solutions and also

avoids vessel damage.



*Contact-less Temperature and Pressure Monitoring System

The advanced contact-less IR sensor could measure the real-time temperature of sample

solutions in each digestion vessel. Meanwhile, the contact-less pressure sensor could monitor

the real-time pressure of each vessel. This realizes isolation between temperature and

pressure controlling system, also avoids sample cross-contamination. Each real-time

temperature and pressure value is displayed during the whole digestion process, allowing a

clear check of digestion conditions.



*Large Storage Capacity

It can edit and store 255 types of programs according to user’s requirements and each

method program can set parameters (temperature, pressure, time, microwave power)

according to their own requirements which provides convenient operation for users.



*Safety Protection System

With high-strength double locked security door, the real-time temperature and pressure

monitoring, automatic adjustment of over-pressure and over-temperature and abnormal sound

monitoring, the device can run in a highly safe environment.



*Power Adjustment

The variable frequency resonance or non-pulse(optional) continues rotating mode ensures high efficient and even microwave throughput.
It can be set between 0~3000W according to user’s requirements.

[Quality components]

*360º continuous rotor makes the rotation in a same direction. It ensures even and

complete digestion, also reduces the  wear and tear of motor, which greatly extend its

service life.

*Color 7 inches LCD touch-screen displays the real-time temperature and pressure, also

the working time and tendency curves.

*The material of sample digestion vessel is imported TFM. For outer protection vessel, it

is imported PEEK and glass fiber which could prevent high temperature, high pressure and

acid corrosion.


[Technical Specifications]


Model

MWD-800

MWD-850

Vessel Quantity

40

50



Temperature

Monitoring

System

Contactless IR Sensor Temperature Monitoring

Each Vessel Temperature Controlled

Temperature Controlling Range: 50~400℃

Temperature Accuracy: ±0.3℃

Display Accuracy: ±0.1℃



Pressure

Monitoring

System

Contactless Sensor Pressure monitoring

Each Vessels Pressure Controlled

Pressure Controlling Range: 0~10MPa

Pressure Accuracy: ±0.01MPa

Display Accuracy: ±0.01Mpa

Vessel Volume

50mL

Sample Vessel

Material

Imported TFM

Protection Vessel

Material

Peek+Glass Fiber

Display

7 inch Color Touch Screen

Rotation

One Direction 360° continuous rotating

Microwave Tank

316L stainless steel tank with corrosion-proof coating

Microwave Power

0-3000W (Adjustable)

0-3000W (Adjustable)

Microwave Leakage

<5mw/cm2

Air Exhaust

High power corrosion-proof air blower

Power

AC 220V±10%, 10A, 50/60Hz

Dimension

640×630×590mm(L×W×H)

Weight

78KG
