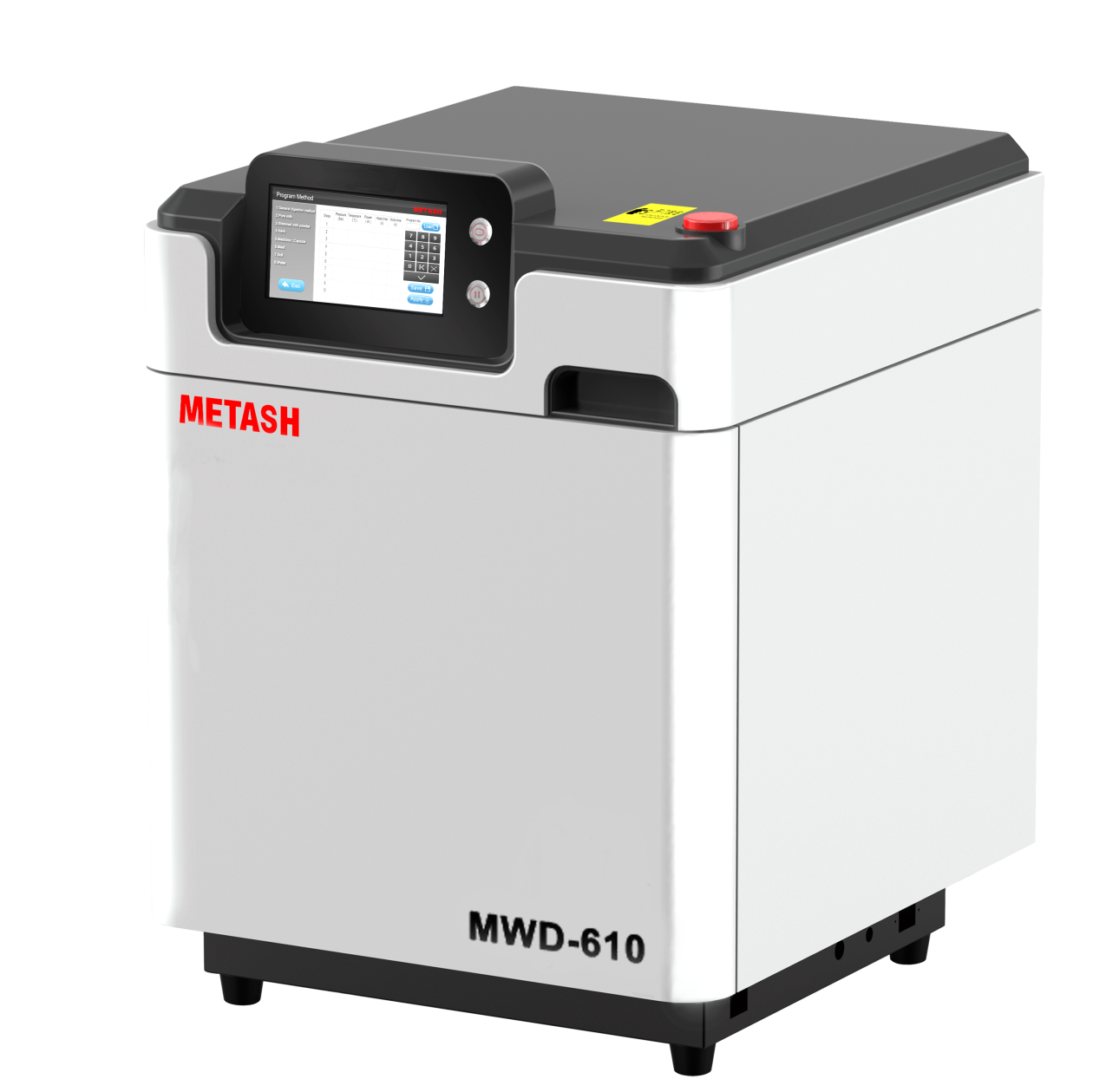

MWD-610 series is a new designed microwave digestion system. Different from the previous model MWD-500/520/600, MWD-610 series
is newly designed and fully upgraded with higher performance and safer protection system.
The smart design and perfect performance make it warmly welcomed by users worldwide.
[Features]
●Optional vessel quantity, up to 12 vessels to meet different digestion requirements.
● Vertical design for even distribution of microwave.
● Real-time monitoring for both temperature and pressure of each vessel.
● Contactless sensor monitoring with no burst disk design saves consumables cost and maintenance cost.
● Imported vessel material for both sample vessel and protection vessel highly ensures safety.
● 7 inch color Touch screen with user-friendly interface for easy operation.
● Imported CFRP outer shell material with high strength ensures impact resistance.
● Pre-installed general standard methods, users can also create, save, modify and delete the method.
●316L industrial stainless steel tank with multilayer teflon coating avoids acid corrosion, also improved cooling efficiency.
[Technical Specification]
MODEL
MWD-610-T6
MWD-610-T8
MWD-610-T10
MWD-610-T12
Vessel Quantity
6
8
10
12
Temperature
Monitoring
System
Contactless IR Sensor Temperature Monitoring
Each Vessel Temperature Controlled
Temperature Controlling Range: 50~400℃
Temperature Accuracy: ±0.1℃
Display Accuracy: ±0.1℃
Pressure
Monitoring
System
Contactless Sensor Pressure monitoring
Each Vessels Pressure Controlled
Pressure Controlling Range: 0~15MPa
Pressure Accuracy: ±0.01MPa
Display Accuracy: ±0.01Mpa
Vessel Volume
100mL
Sample Vessel
Material
Imported TFM
Protection Vessel
Material
Peek+Glass Fiber
Display
7 inch Touch Screen
Rotation
One Direction 360° continuous rotating
Microwave Tank
316L stainless steel tank with corrosion-proof coating
